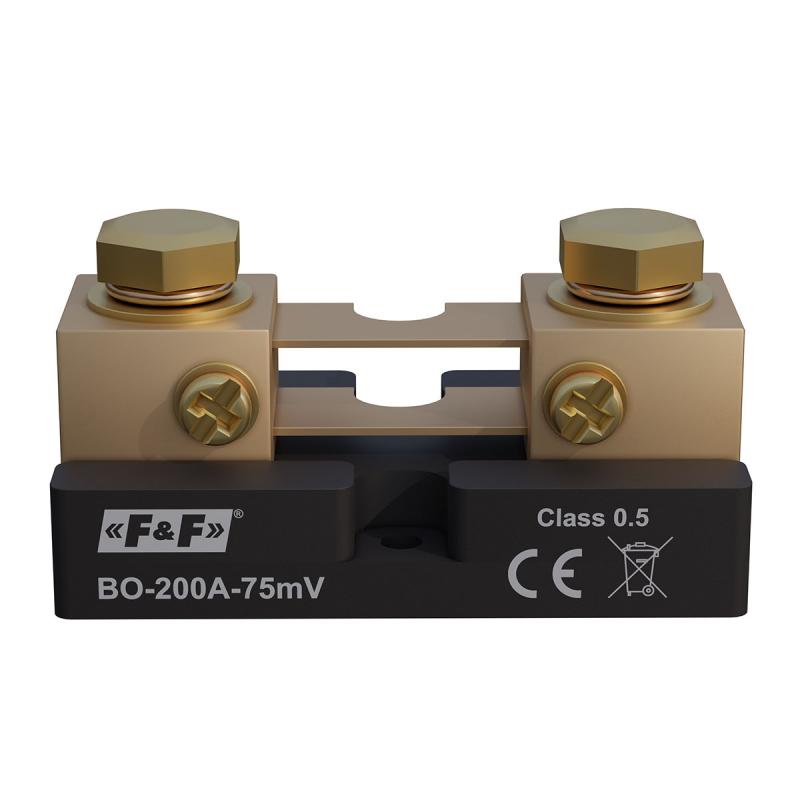

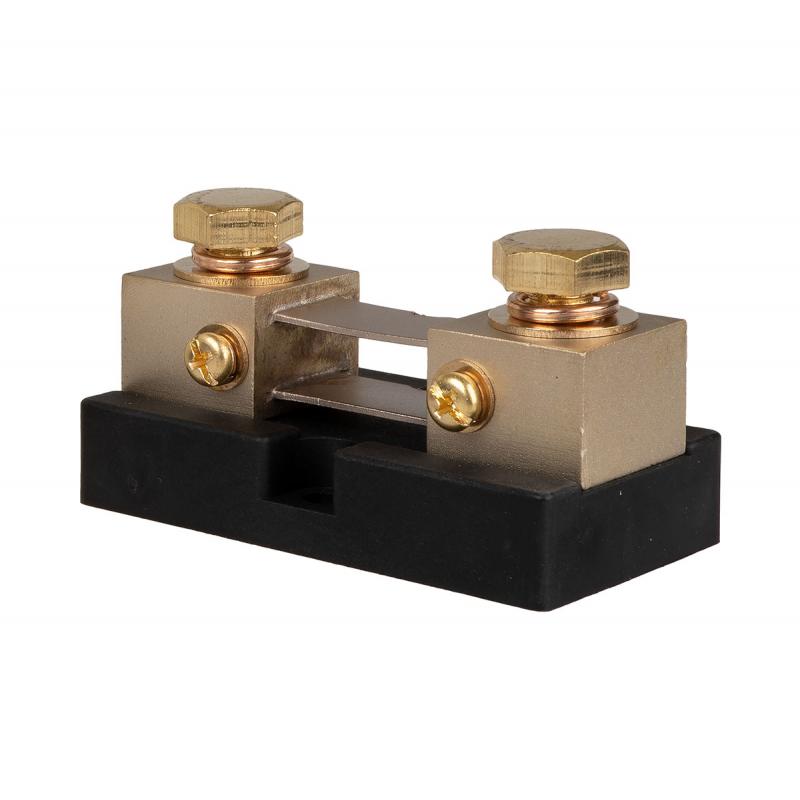

Bocznik prądowy 200 A
Bocznik prądowy.
Spadek napięcia pomiędzy zaciskami bocznika pomiarowego jest proporcjonalny do natężenia przepływającego prądu. Dla znamionowego prądu bocznika spadek napięcia wynosi 75 mV. Boczniki można stosować w połączeniu z dedykowanymi licznikami energii (np. LE-01d), lub innymi miernikami prądu (elektronicznymi lub magnetoelektrycznymi).
- Napięcie wyjściowe
- 75 mV
- Klasa dokładności
- 0,5
- Prąd znamionowy
- 200 A
- Zaciski śrubowe
- prądowe: 2× śruba M10×15; napięciowe: 2× śruba M5×8
- Napięcie probiercze
- 5 kV
- Wymiary
- 82×44×43 mm
- Montaż
- tablicowy, 2 wkręty 5 mm
- Stopień ochrony
- IP20
- Przeciążalność prądowa ciągła
- 120% In
- Przeciążalność prądowa krótkotrwała (5 s)
- 500% In
