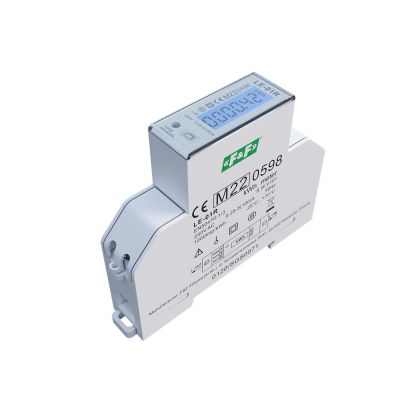

Electrical energy meter LE-01R
The LE-01R is a static (electronic) calibrated electricity meter for single-phase alternating current, designed for direct current measurement in a 2-wire system.
MID Directive 2014/32/EU
Certificate No. 0120/SGS0571
Compliance
MID Directive 2014/32/EU
Certificate 0120/SGS0571
Measured values
- Total active energy [kWh]
- Active energy imported AE+ [kWh]
- Active energy exported AE- [kWh]
- Total reactive energy [kvarh]
- Phase voltage U [V]
- Phase current I [A]
- Frequency f [Hz]
- Active power P [W]
- Reactive power Q [var]
- Apparent power S [VA]
- Power factor cosϕ
- Demand active energy imported [W]
- Total demand active energy imported [W]
- Demand active energy exported [W]
- Total demand active energy exported [W]
- Demand reactive energy imported [var]
- Total demand reactive energy imported [var]
- Demand reactive energy exported [var]
- Total demand reactive energy exported [var]
Functioning
The meter provides measurement of active and reactive energy and power measurement as well as monitoring of many additional network parameters such as voltage, current, active power, reactive power, apparent power, frequency, power factor. The meter has additional, resettable active and reactive energy counters. The touch button located on the front panel of the meter allows you to select the displayed parameter.
The meter is equipped with 2 open collector pulse outputs for signalling increases in active and reactive energy consumption. The backlit LCD display makes it easy to read the measured values.
- Type
- single-phase
- Measurement
- Direct
- Installation
- 1-fazowa, 2-przewodowa
- Rated voltage
- 230 V AC
- The minimum measured current
- 0,02 A
- Base current
- 5:00 AM
- Maximum current
- 100 A
- Voltage measurement range
- 184÷276 V AC
- Nominal frequency
- 50 Hz
- Insulation protection class
- II class
- Housing
- tworzywo PC
- Klasa warunków środowiskowych - mechanicznych
- M1
- Klasa warunków środowiskowych - elektromagnetycznych
- E2
- Counter's own consumption
- 10 VA; 1 W
- Scope of indication of the abacus
- 0÷99999 kWh
- Counter constant
- (1 Wh/imp) 1000 imp/kWh
- Compatibility
- MID
- Pulse output - Type
- open collector
- Pulse output - Voltage
- 27 V DC
- Pulse output - Current
- 27 mA
- Wyjście impulsowe - czas impulsu
- 100 ms (dla stałej impulsowania 100 – 1000); 30 ms (dla stałej impulsowania 1250 - 2500)
- Pulse output - pulse constant
- 100 – 2500 imp/kWh/kvarh

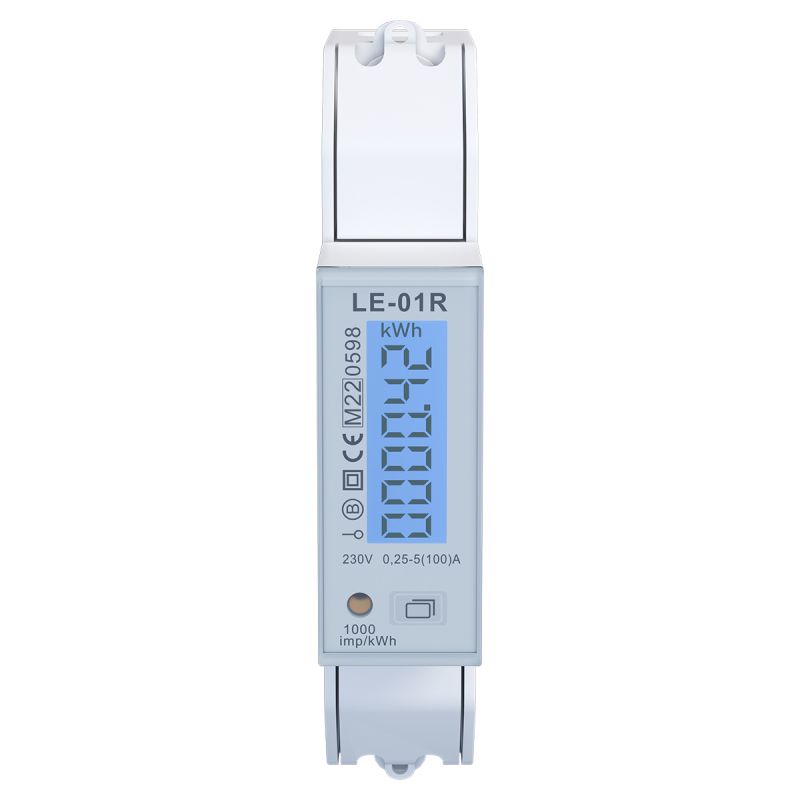

- Display
- 7-cyfrowy LCD podświetlany (kolor niebieski)
- LCD backlight
- YES
- Reading signaling
- LED red
- Accuracy class
- B
- Terminal

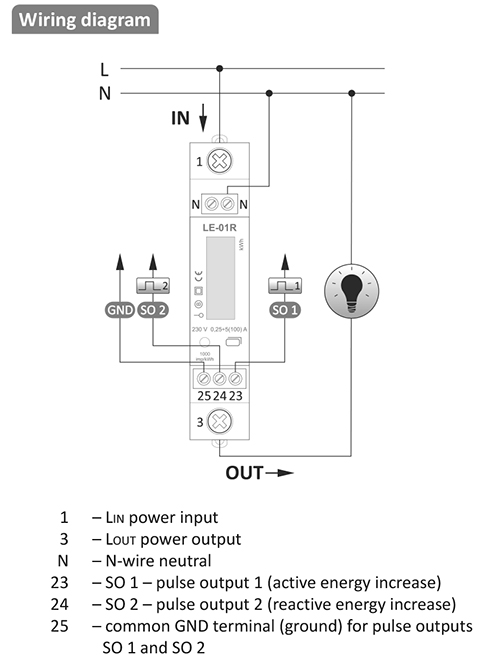

- 100 A (zaciski 1, 3) - zaciski śrubowe 25 mm²; neutralny (zacisk N) - zaciski śrubowe 1 mm²;komunikacja (zaciski 23, 24, 25) - zaciski śrubowe 1 mm²
- Working temperature
- -20÷65°C
- Dimensions
- 1 module (18 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
- Wyjścia impulsowe
- 2
- MID declaration
- 0120/SGS0571
- Wyjścia impulsowe - funkcja
- przyrost energii czynnej, przyrost energii biernej
- Measuring system
- single-phase
- 2-way energy measurement
- TAK
| Produkt | Licznik 1-fazowy |
Licznik 3-fazowy |
Wskaźnik 1-fazowy |
Wskaźnik 3-fazowy |
MID | Pomiar pośredni |
Pomiar półpośredni |
2-kierunkowy | Pomiar dodatkowych parametrów | Komunikacja | Podświetlenie liczydła |
Kasowanie | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Energia czynna pobrana | Energia czynna oddana | Energia bierna | Energia bierna pobrana | Energia bierna oddana | Moc czynna, bierna, pozorna | Zapotrzebowanie na moc | Napięcie | Prąd | Częstotliwość | Współczynnik mocy | Ethernet | Modbus | M-Bus | |||||||||||
| LE-01 | ● | – | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-01d | ● | – | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-01DC | ● | – | – | – | – | – | bocznik | ● | ● | ● | – | – | – | – | ● | ● | ● | – | – | – | ● | – | ● | – |
| LE-01M | ● | – | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | ● | – | – | – |
| LE-01MB | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | ● | – |
| LE-01MQ | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | – |
| LE-01MR | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | ● |
| LE-01MW | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | ● |
| LE-01R | ● | – | – | – | ● | – | – | ● | ● | ● | ● | – | – | ● | ● | ● | ● | ● | ● | – | – | – | ● | ● |
| LE-02d | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-02d CT | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-03 | – | ● | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-03d | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-03d CT200 | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-03d CT400 | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-03ETH | – | ● | – | – | ● | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | – |
| LE-03ETH-CT | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | – |
| LE-03 FPV-RST | – | ● | – | – | ● | – | – | ● | ● | ● | – | – | – | ● | – | – | – | – | – | – | – | – | ● | ● |
| LE-03M | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | ● | ● | ● | – | – | – | ● | – | – | – |
| LE-03M CT | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | ● | – | – | – |
| LE-03MB | – | ● | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | ● | – |
| LE-03MB CT | – | ● | – | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | ● | – |
| LE-03MP | – | ● | – | – | – | – | – | – | ● | – | ● | – | – | ● | – | ● | ● | ● | – | – | ● | – | – | – |
| LE-03MQ | – | ● | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | – |
| LE-03MQ CT | – | ● | – | – | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | – |
| LE-03MW | – | ● | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | – | ● |
| LE-03MW CT | – | ● | – | – | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | – | ● |
| LE-04d | – | ● | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-05d | – | ● | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| NEL-1-30 | – | – | ● | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| NEL-1-60 | – | – | ● | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| NEL-3-100 | – | – | – | ● | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ● |
| WZE-1 | ● | – | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| WZE-1-RST | ● | – | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ● |
| WZE-3 | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| WZE-3-RST | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ● |
