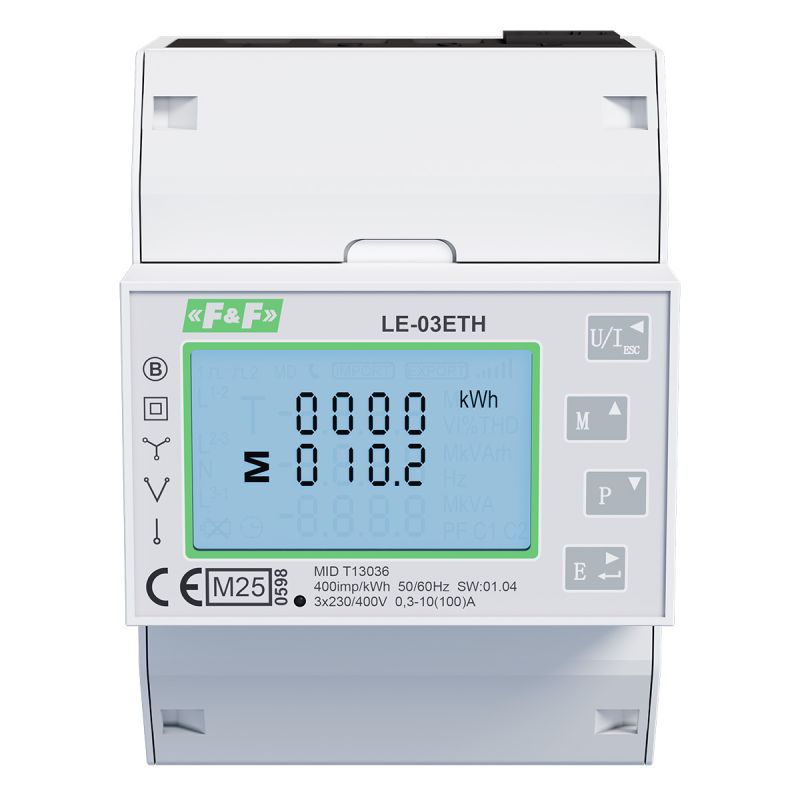

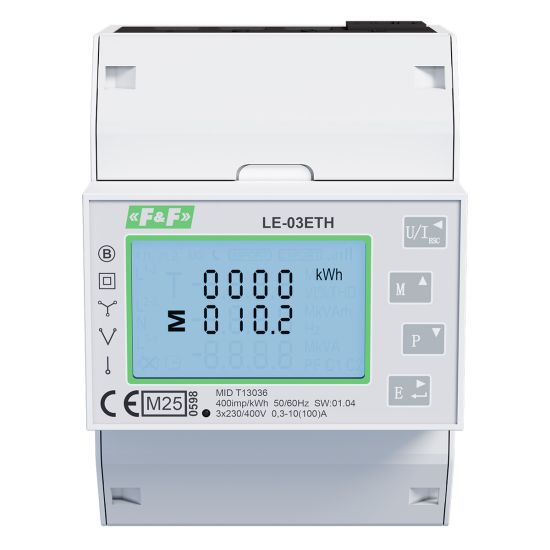

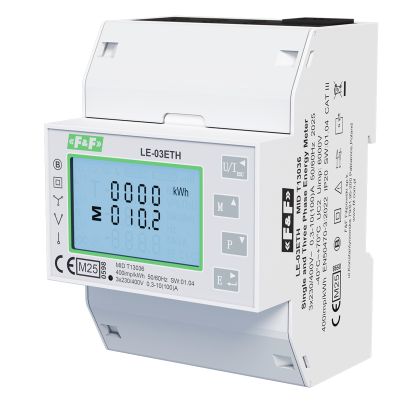

Energy consumption meter 3-phase LE-03ETH
Three-phase. Backlit LCD display. Direct, bi-directional measurement of active and reactive energy and network parameters.
MID certified.
Ethernet interface and Modbus TCP communication protocol.
Compliance
MID Directive 2014/32/EU
Certificate No. TI3036
Purpose
The LE-03ETH is an electronic, multifunctional, certified (MID declaration) electricity meter, suitable for direct metering. The meter is suitable for remote reading via the built-in Ethernet communication port and Modbus TCP protocol support.
Functions
- 3-phase
- bidirectional
- direct measurement 100 A
- indication of kWh/kvar (input/output)
- indication of mains parameters
- MID certified
- Modbus TCP protocol
- Ethernet port
- backlit LCD multifunction display
- counter configuration protection by password
Measured values
| Active energy input/output | AE+/AE- | [kWh] |
| Reactive energy input/output | RE+/RE- | [kvarh]. |
| Phase voltages | U1, U2, U3 | [V] |
| Phase currents | I1, I2, I3 | [A] |
| Frequency | F | [Hz] |
| Active power | P | [W] |
| Reactive power | Q | [var]. |
| Apparent power | S | [VA] |
| Power factor | cosϕ | |
| Harmonics THD | % | |
| Power and current demand | kW, kvar, kVA, I |
- Measurement
- Direct
Semi-direct - Communication interface
- Modbus TCP
- Rated voltage
- 3×230/400 V AC
- Base current
- 10:00 AM
- Maximum current
- 3×100 A
- Nominal frequency
- 50÷60 Hz
- Insulation protection class
- II class
- Housing
- PC+ABS plastic
- Klasa warunków środowiskowych - mechanicznych
- M1
- Klasa warunków środowiskowych - elektromagnetycznych
- E2
- Counter's own consumption
- 10 VA; 2 W
- Scope of indication of the abacus
- 0÷9999999,9 kWh
- Counter constant
- 400 imp/kWh
- Compatibility
- MID
- Display
- LCD backlit (blue)
- Humidity (non-condensing)
- ≤95%
- LCD backlight
- YES
- Reading signaling
- LED red
- overload
- 30×lmax/10 ms
- Insulation
- 4 kV/1 min.; 6 kV/1,2 μs
- Voltage measured L-N
- 100– 276 V AC
- Voltage measured L-L
- 173 – 480 V AC
- Terminal
- Zaciski śrubowe 4 – 25 mm2
- Tightening torque
- 3,5 Nm
- Working temperature
- -25÷55°C
- Dimensions
- 4 modules (72 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP51
- Temperatura przechowywania
- -40°C 70°C
- Dokładność pomiaru - energia czynna (EN504070-3:2022)
- klasa B
- Dokładność pomiaru - energia bierna (IEC62053-23)
- klasa 2
- Dokładność pomiaru - napięcie
- 0,5%
- Dokładność pomiaru - prąd
- 0,5%
- Dokładność pomiaru - częstotliwość
- 0,2%
- Dokładność pomiaru - moc czynna i bierna
- ±1%
- IP (domyślnie)
- 192.168.1.200
- Port
- 502
- Maska podsieci
- 255.255.255.0
- Brama
- 192.168.1.1
- DHCP (domyślnie)
- wyłączony
- Minimum current
- 0,3 A
- Minimum detection current
- 0,04 A
- Vibration resistance
- 2g (10-50 Hz, according to IEC60068-2-6)
- Mounting height
- Up to 2000 m. above sea level.
- Measuring system
- 3-phase 3-wire
3-phase 4-wire - Communication
- Ethernet
- 2-way energy measurement
- TAK
| Produkt | Licznik 1-fazowy |
Licznik 3-fazowy |
Wskaźnik 1-fazowy |
Wskaźnik 3-fazowy |
MID | Pomiar pośredni |
Pomiar półpośredni |
2-kierunkowy | Pomiar dodatkowych parametrów | Komunikacja | Podświetlenie liczydła |
Kasowanie | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Energia czynna pobrana | Energia czynna oddana | Energia bierna | Energia bierna pobrana | Energia bierna oddana | Moc czynna, bierna, pozorna | Zapotrzebowanie na moc | Napięcie | Prąd | Częstotliwość | Współczynnik mocy | Ethernet | Modbus | M-Bus | |||||||||||
| LE-01 | ● | – | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-01d | ● | – | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-01DC | ● | – | – | – | – | – | bocznik | ● | ● | ● | – | – | – | – | ● | ● | ● | – | – | – | ● | – | ● | – |
| LE-01M | ● | – | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | ● | – | – | – |
| LE-01MB | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | ● | – |
| LE-01MQ | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | – |
| LE-01MR | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | ● |
| LE-01MW | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | ● |
| LE-01R | ● | – | – | – | ● | – | – | ● | ● | ● | ● | – | – | ● | ● | ● | ● | ● | ● | – | – | – | ● | ● |
| LE-02d | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-02d CT | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-03 | – | ● | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-03d | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-03d CT200 | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-03d CT400 | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-03ETH | – | ● | – | – | ● | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | – |
| LE-03ETH-CT | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | – |
| LE-03 FPV-RST | – | ● | – | – | ● | – | – | ● | ● | ● | – | – | – | ● | – | – | – | – | – | – | – | – | ● | ● |
| LE-03M | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | ● | ● | ● | – | – | – | ● | – | – | – |
| LE-03M CT | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | ● | – | – | – |
| LE-03MB | – | ● | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | ● | – |
| LE-03MB CT | – | ● | – | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | ● | – |
| LE-03MP | – | ● | – | – | – | – | – | – | ● | – | ● | – | – | ● | – | ● | ● | ● | – | – | ● | – | – | – |
| LE-03MQ | – | ● | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | – |
| LE-03MQ CT | – | ● | – | – | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | – |
| LE-03MW | – | ● | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | – | ● |
| LE-03MW CT | – | ● | – | – | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | – | ● |
| LE-04d | – | ● | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-05d | – | ● | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| NEL-1-30 | – | – | ● | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| NEL-1-60 | – | – | ● | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| NEL-3-100 | – | – | – | ● | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ● |
| WZE-1 | ● | – | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| WZE-1-RST | ● | – | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ● |
| WZE-3 | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| WZE-3-RST | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ● |
