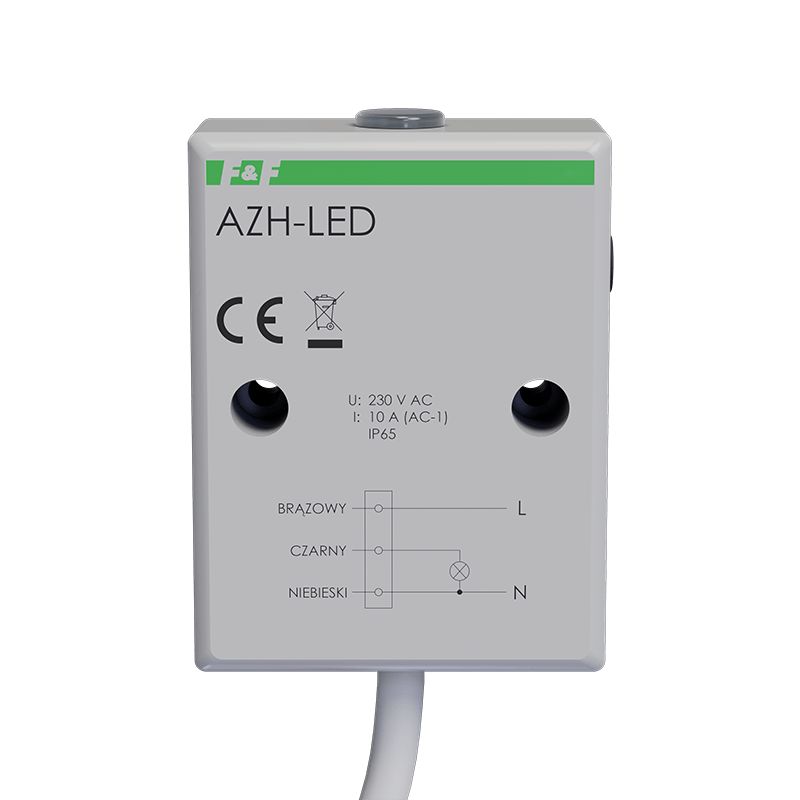

Twilight switch hermetic AZH-LED 230 V

Twilight switch hermetic AZH-LED 230 V

AZH-LED, 5902431672953

Product description

The AZH-LED is a twilight switch with a built-in light sensor, enclosed in a hermetically sealed housing and specially adapted to switch on the LED lighting.

By using a switching element that guarantees correct operation with current pulses up to 160 A and additional components responsible for surge suppression, the AZH-LED will successfully manage to switch on and off the LED lighting, despite its energy efficiency, generates strong current surges when switched on, effectively destroying classic relays.

Functioning
The twilight switch should be placed in a place with constant access to natural light, which by changing its intensity will cause the lighting to switch on and off. The time of switch-on of the lighting can be set by the user using the potentiometer. Rotation towards the "moon" – will switch on the lighting later, rotation towards the "sun" will switch it on earlier. The twilight switch has a system that delays switching on and off of the lighting, thus reducing the impact of various disturbances (such as atmospheric discharges) on the operation of the machine.


power tableThe above data are indicative and will heavily depend on the design of a specific receiver (that is especially important for LED bulbs, energy-saving lamps, electronic transformers and pulse power supply units), switching frequency and operating conditions.




Power supply voltage195÷253 V AC
Power supply tolerance-10 ÷ 10 %
Maximum AC-1 load current10 A
The executive elementrelay
Contact configuration1 × NO
Separation of the contactNO
Resistance to shock currents160 A/20 ms
Operating threshold - adjustable2 ÷ 1000 Lx
Hysteresisok. 15 Lx
Delay of switching onok. 10 s
Delay of tripping operationok. 20 s
TerminalOMY 3×0,75 mm²; length: 0,8 m
Power consumption0,56 W
Working temperature-25 ÷ 50 °C
Dimensions51×67×26 mm (± 1 mm)
Assemblyon wall
Ingress Protection MarkingIP65 - hermetic
