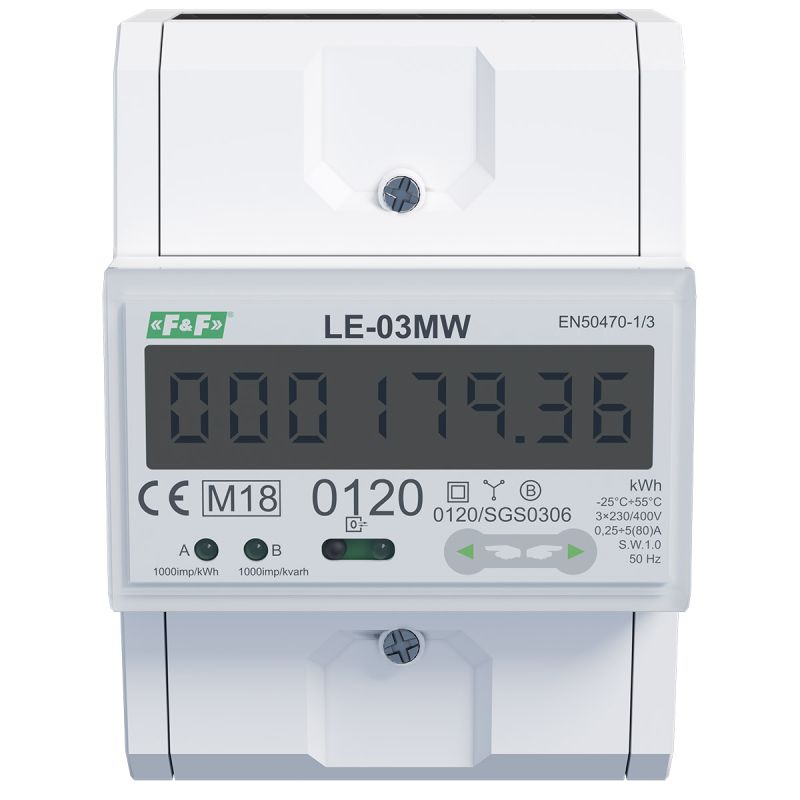

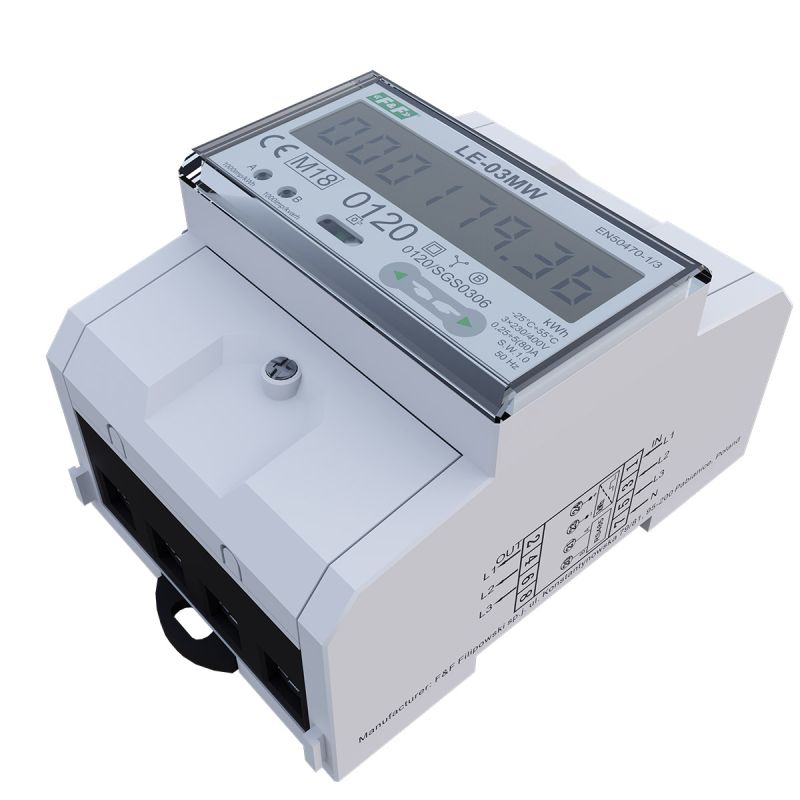

Electricity energy meter LE-03MW
3-phase, 2-wire, tariff to direct measurement.
LE-03MW is an electronic, compliant with the MID Directive, 2-way electricity meter for three-phase electricity, designed for measurement in a direct system.
The built-in real-time clock allows energy consumption to be measured with different tariff zones. The device is equipped with communication interfaces: RS-485
with Modbus RTU protocol and optical port compliant with EN62056 (IEC1107) standard for remote reading and configuration of the meter.
Characteristis of the device
3-phase, 2-way energy meter;
* direct measurement up to 80 A;
* energy measurement in 4 tariff zones;
* built-in real time clock with battery backup to switch tariff zones;
* registration of total and divided into consumption tariffs:
– total active and reactive energy;
– active and reactive energy divided into individual quadrants;
* 8 time schedules dividing the day into tariff zones;
* it can settle energy according to schedules specific for business days and weekends;
* it can divide year into 8 time intervals; in each interval the energy (for weekdays) can be settled according to a different schedule;
* indication of network parameters (voltages, currents, active power, reactive power, apparent power, power factor, frequency);
* calculation of power demand for individual tariffs;
* an additional, resettable energy consumption meter;
* compliance with MID;
* RS-485 port, Modbus RTU protocol;
* optical communication port compliant with EN62056 (IEC1107) standard;
* 2× SO pulse outputs with a programmable number of pulses per kWh / kvarh.
* multifunction LCD display.
- Type
- three-phase
- Measurement
- Direct
- Installation
- 3-phase, 4-wire
- The minimum measured current
- 0,003 A
- Base current
- 5:00 AM
- Reference voltage
- 3×230/400 V
- Maximum current
- 3×80 A
- Nominal frequency
- 50 Hz
- Insulation protection class
- II class
- Counter's own consumption
- 10 VA; 2 W
- Scope of indication of the abacus
- 8 cyfr
- Compatibility
- MID
- Communication protocol
- MODBUS RTU
- Prędkość transmisji
- 1200, 2400, 4800, 9600 bps
- Parzystość
- EVEN
- Stop bits
- 1
- ports
- RS-485
- LCD backlight
- NO
- Reading signaling
- 2 x LED
- Pulse output SO + SO-
- open collector
- Connection voltage SO + SO-
- max. 30 V DC
- Connection current SO + SO-
- max. 27 mA
- Accuracy class
- B
- The number of LCD characters
- 8
- overload
- 30×lmax/10 ms
- Insulation
- 4 kV/1 min.; 6 kV/1 μs
- Voltage measured L-N
- 100÷289 V AC
- Voltage measured L-L
- 173÷500 V AC
- Terminal
- pluggable terminal blocks 25 mm²
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 76×100×65 mm (4,5 modułu DIN)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP51
- Measuring system
- 3-phase 4-wire
- Communication
- Modbus
- 2-way energy measurement
- TAK
| Produkt | Licznik 1-fazowy |
Licznik 3-fazowy |
Wskaźnik 1-fazowy |
Wskaźnik 3-fazowy |
MID | Pomiar pośredni |
Pomiar półpośredni |
2-kierunkowy | Pomiar dodatkowych parametrów | Komunikacja | Podświetlenie liczydła |
Kasowanie | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Energia czynna pobrana | Energia czynna oddana | Energia bierna | Energia bierna pobrana | Energia bierna oddana | Moc czynna, bierna, pozorna | Zapotrzebowanie na moc | Napięcie | Prąd | Częstotliwość | Współczynnik mocy | Ethernet | Modbus | M-Bus | |||||||||||
| LE-01 | ● | – | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-01d | ● | – | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-01DC | ● | – | – | – | – | – | bocznik | ● | ● | ● | – | – | – | – | ● | ● | ● | – | – | – | ● | – | ● | – |
| LE-01M | ● | – | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | ● | – | – | – |
| LE-01MB | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | ● | – |
| LE-01MQ | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | – |
| LE-01MR | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | ● |
| LE-01MW | ● | – | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | ● |
| LE-01R | ● | – | – | – | ● | – | – | ● | ● | ● | ● | – | – | ● | ● | ● | ● | ● | ● | – | – | – | ● | ● |
| LE-02d | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-02d CT | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-03 | – | ● | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-03d | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | ● | – |
| LE-03d CT200 | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-03d CT400 | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-03ETH | – | ● | – | – | ● | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | – |
| LE-03ETH-CT | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | – |
| LE-03 FPV-RST | – | ● | – | – | ● | – | – | ● | ● | ● | – | – | – | ● | – | – | – | – | – | – | – | – | ● | ● |
| LE-03M | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | ● | ● | ● | – | – | – | ● | – | – | – |
| LE-03M CT | – | ● | – | – | – | – | ● | – | ● | – | – | – | – | – | – | – | – | – | – | – | ● | – | – | – |
| LE-03MB | – | ● | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | ● | – |
| LE-03MB CT | – | ● | – | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | – | ● | ● | – |
| LE-03MP | – | ● | – | – | – | – | – | – | ● | – | ● | – | – | ● | – | ● | ● | ● | – | – | ● | – | – | – |
| LE-03MQ | – | ● | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | – |
| LE-03MQ CT | – | ● | – | – | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | ● | – |
| LE-03MW | – | ● | – | – | ● | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | – | ● |
| LE-03MW CT | – | ● | – | – | – | – | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | – | ● | – | – | ● |
| LE-04d | – | ● | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| LE-05d | – | ● | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| NEL-1-30 | – | – | ● | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| NEL-1-60 | – | – | ● | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| NEL-3-100 | – | – | – | ● | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ● |
| WZE-1 | ● | – | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| WZE-1-RST | ● | – | – | – | – | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ● |
| WZE-3 | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| WZE-3-RST | – | ● | – | – | ● | – | – | – | ● | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ● |
