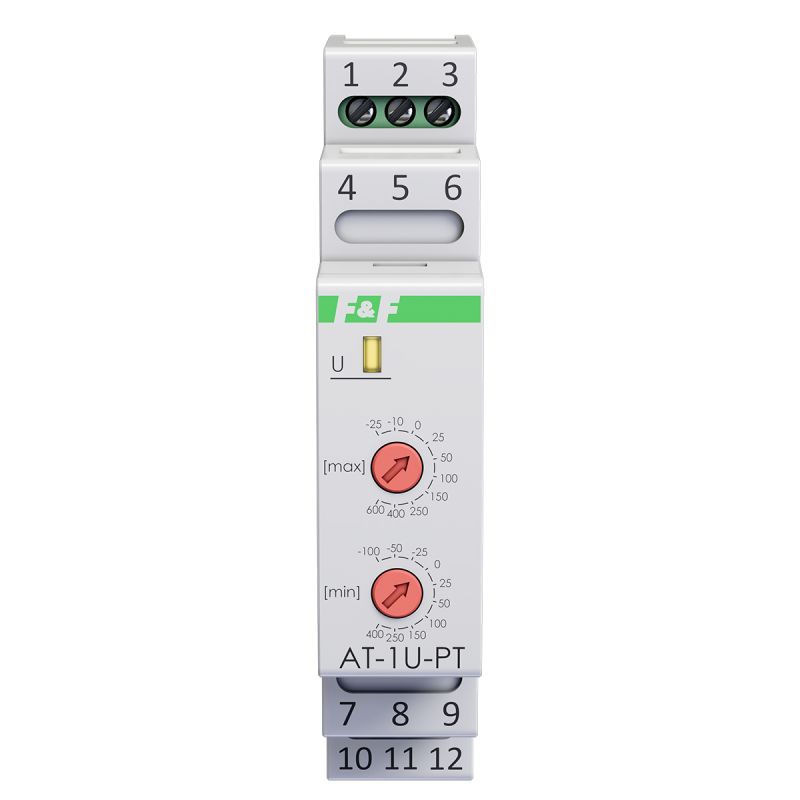

AT-1U-PT voltage output temperature transducer
An analogue temperature transducer with a 1–10 V voltage output.
Sensor: 3-wire PT100.
Measuring range: −100 to 600°C.
Adjustable measurement range.
Visual status indication.
Compatible with the RT56 probe.
The temperature sensor must be purchased separately.
AT-1U-PT temperature transducer, 1–10 V voltage output
Why choose the AT-1U-PT transducer?
The AT-1U-PT converts the measurement from a 3-wire PT100 sensor into an analogue voltage signal of 1–10 V.
What does this mean in practice?
- Measurement range: −100 to 600°C.
- Adjustable measurement range.
- Visual indicators for device operation and sensor status.

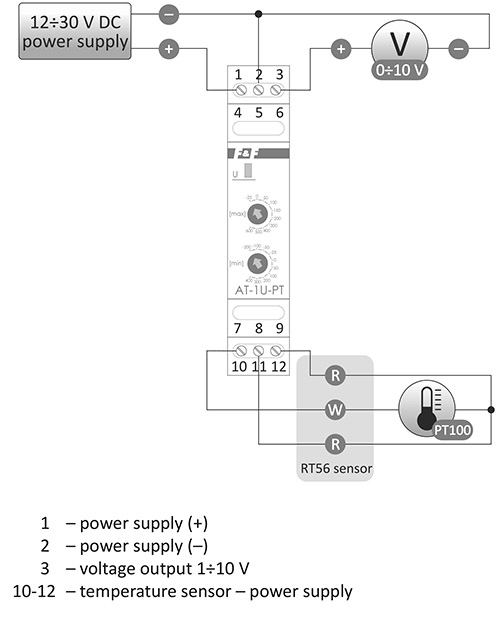

- A 3-core shielded cable must be used to connect the PT100.
Important: the PT100 sensor is an external component. The RT56 probe, with a range of −100 to 400°C and available separately, can be used in conjunction with it.
What do you need to know before installing the transmitter?
The transducer should be installed by a qualified electrician with appropriate certification and experience in electrical installations.
It is recommended to use high-quality power supplies with a good output voltage filtering factor to power the transducer.
Do not route signal cables, particularly the cable to the temperature sensor, in parallel with other high-current cables.
It is recommended to use a 3-core shielded cable to connect the temperature sensor. The cable shield must be connected to PE at one end.
For connecting the voltage output, it is recommended to use a 2-core shielded cable, connected at one end to the PE.
- Power supply voltage
- 12÷30 V DC
- Maksymalna obciążalność wyjścia napięciowego
- 4 mA
- Output voltage
- 1÷10 V
- Measurement range
- -100÷600°C
- Maksymalna rezystancja odbiornika
- zasilanie 9 V - 375 Ω; zasilanie 12 V - 500 Ω; zasilanie 24 V - 1000 Ω; zasilanie 30 V - 1200 Ω
- Temperature probe
- PT100 (3-przewodowy)
- Processing error
- 1%
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 0,3 W
- Working temperature
- -25÷55°C
- Dimensions
- 1 module (18 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
