Twilight switch hermetic miniature AZH-MINI-LED 230 V

Reference: AZH-MINI-LED, EAN13: 5902431673967

Product description

Twilight automat for switching on LED lighting.

Power supply: 100 ÷ 265 V AC
Maximum load: 10 A.
Photosensitive element: built-in
Housing: hermetic miniature
Installation: surface mounted

The AZH-MINI-LED is a twilight switch with a built-in light sensor, enclosed in a hermetically sealed housing and specially adapted to switch on the LED lighting.

By using a switching element that guarantees correct operation with current pulses up to 160 A and additional components responsible for surge suppression, the AZH-MINI-LED will successfully manage to switch on and off the LED lighting, despite its energy efficiency, generates strong current surges when switched on, effectively destroying classic relays.

Functioning

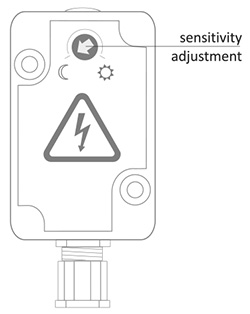

The twilight switch should be placed in a place with constant access to natural light, which by changing its intensity will cause the lighting to switch on and off. The time of switch-on of the lighting can be set by the user using the potentiometer. Rotation towards the "moon" – will switch on the lighting later, rotation towards the "sun" will switch it on earlier. The twilight switch has a system that delays switching on and off of the lighting, thus reducing the impact of various disturbances (such as atmospheric discharges) on the operation of the machine.

Power supply voltage	100÷265 V AC
Power supply tolerance	-10 ÷ 10 %
Maximum AC-1 load current	16 A
The executive element	relay
Contact configuration	1 × NO
Separation of the contact	NO
Resistance to shock currents	160 A/20 ms
Operating threshold - adjustable	2 ÷ 1000 Lx
Hysteresis	ok. 15 Lx
Delay of switching on	ok. 10 s
Delay of tripping operation	ok. 20 s
Terminal	OMY 3×0,75 mm²; długość 0,5 m
Power consumption	0,6 W
Working temperature	-25 ÷ 50 °C
Dimensions	42×64×30 mm
Assembly	on wall
Ingress Protection Marking	IP65 - hermetic
