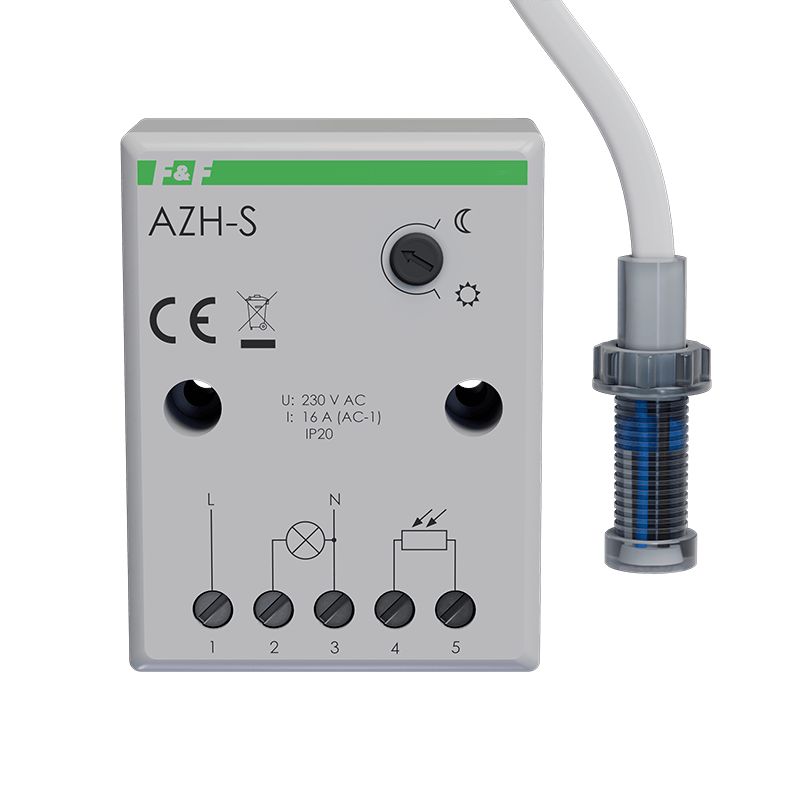

Light dependent relay AZH-S 230 V

Reference: AZH-S, EAN13: 5908312591030

Product description

Light dependent relay serves to switch-ON the lighting of streets, squares, shop windows, neon lamps etc, at twilight and to switch-OFF afore mentioned lighting at dawn.
To substrate 16A

Functioning
External answering machine probe placed at the site of access for natural light, which changes its intensity will be annexed to and result in switching on/off lights. The time of switching on lights can be set by the user by the potentiometer. Turnover in the "moon" - switch later, turnover in the "sun" - switch earlier. Light dependent relay posses system of delaying switch on/off lighting, which limiting the impact of disturbance (eg, lightning) to work machine.

Attention!
In the case of control measures light dependent relay tightly cover the entire appliance, such as a cardboard box or a dark, thick cloth. Cover only the "eye" the probe, such as the finger is not enough, because the intensity of sunlight is very strong and is passes to f by a plastic cover and the human body.

Power of receivers:

Attention!
In case of the length of the cable probe longer than 10m, should not be lead close to parallel power cable.

Attention!
There is possibility of a special implementation of automatic voltage zmierzchowych other than those indicated in the table of technical data, such as 12V, 24V, 48V and 110V AC/AC and others.

Power supply voltage	230 V AC
Power supply tolerance	-10 ÷ 10 %
Maximum AC-1 load current	16 A
The executive element	relay
Contact configuration	1 × NO
Separation of the contact	NO
Operating threshold - adjustable	2 ÷ 1000 Lx
Operating threshold - set	ok. 7 Lx
Hysteresis	ok. 15 Lx
Delay of switching on	ok. 10 s
Delay of tripping operation	ok. 20 s
The degree of probe protection	IP65
Photosensitive element	external probe Ø 10 mm
Terminal	pluggable terminal blocks 4,0 mm²
Tightening torque	0,5 Nm
Power consumption	0,56 W
Working temperature	-25 ÷ 50 °C
Dimensions	51×67×26 mm (± 1 mm)
Assembly	on wall
Ingress Protection Marking	IP20

AZH-S 230 V manual (658.82k)

AZH-S 230 V - outline dxf (92.31k)

AZ AZH AWZ declaration CE 2023 (179.94k)
