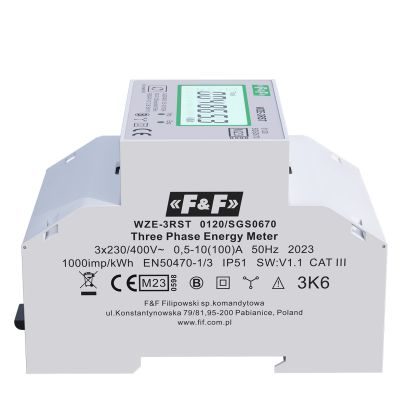

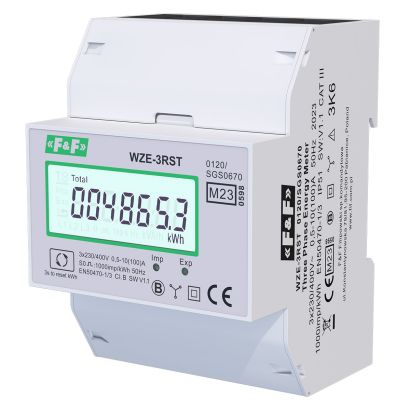

3-phase electricity consumption meter WZE-3RST
Three-phase electricity consumption meter with one energy consumption position on the LCD display.
Possibility to reset the auxiliary meter status.
MID certified.
MID Directive 2014/32/EU
Certificate No. 0120/SGS0670
Features
- MID certified.
- Capable of measuring higher currents of 3x100 A.
- indicates current power consumption.
- total and resettable energy consumption meter,
- measurement of energy consumed (1-way meter),
- easy resetting of the auxiliary meter using a button on the meter face.
Operation
The WZE-3 RST indicator is an energy consumption indicator in a 3-phase, 4-wire system. It has an additional, resettable energy meter.
A special electronic circuit, under the influence of the flowing current and the applied voltage in each phase, generates pulses in an amount proportional to the electricity consumed in that phase. The sum of the pulses from the three phases, signalled by a flashing LED, is converted into the energy consumed in the entire three-phase system. Its value is indicated by a segmented LCD display. The digits after the decimal point represent hundredths of a kWh (0.01 kWh = 10 Wh).

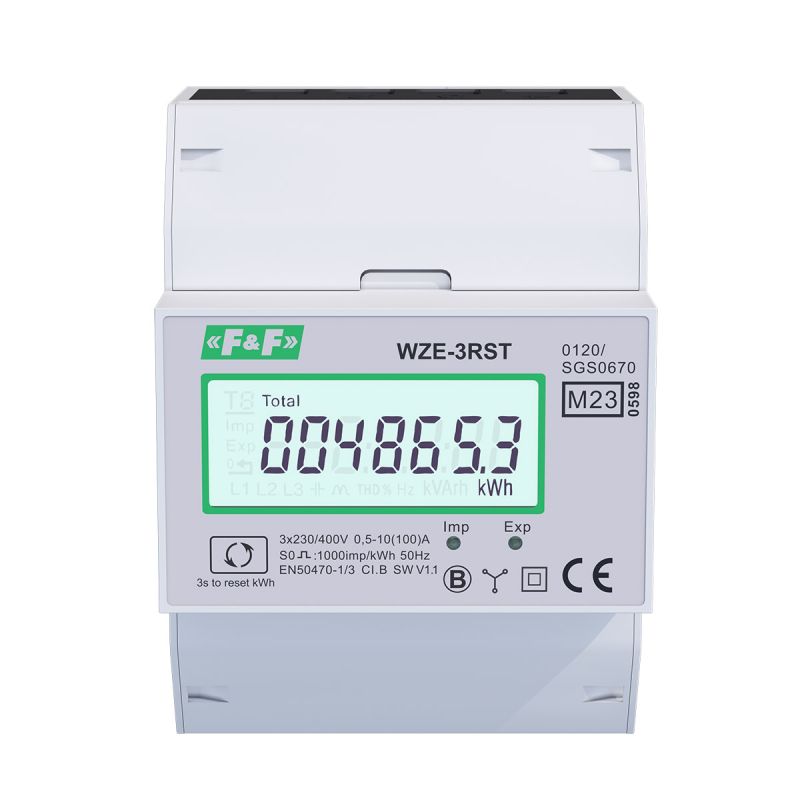

The indicator has a 1-row LCD display that allows you to view the total energy consumption or the energy consumption since the last meter reset. The value of the resettable meter is symbolised on the indicator by displaying the [r] sign on the first segment of the display.
To switch between the display of the resettable counter and the total counter, briefly press the button on the front panel. To return to the total energy counter, briefly press the button on the front panel again.
Resetting the auxiliary counter
The device is equipped with a resettable auxiliary energy counter. To reset the counter value, go to the resettable counter reading and then press and hold the button on the front of the device for about 5 seconds. This will return the auxiliary counter to its initial setting (0000000.0) without changing the total counter reading.
- Type
- three-phase
- Measurement
- Direct
- Installation
- 3-phase, 4-wire
- The minimum measured current
- 0,04 A
- Base current
- 3×10 A
- Reference voltage
- 3×230/400 V
- Maximum current
- 3×100 A
- Nominal frequency
- 50 Hz
- Insulation protection class
- II class
- Counter's own consumption
- 10 VA; 2 W
- Scope of indication of the abacus
- 0÷999999,9 kWh
- Counter constant
- 1000 imp/kWh
- Compatibility
- MID
- Communication protocol
- NONE
- Display
- 7-digit, LCD backlit (white)
- Voltage measurement - measuring range
- 160÷265 V
- LCD backlight
- YES
- Reading signaling
- LED red
- Pulse output SO + SO-
- open collector
- Connection voltage SO + SO-
- max. 30 V DC
- Connection current SO + SO-
- 20 mA
- Pulse time SO + SO-
- 35 ms
- Accuracy class
- B
- overload
- 30×lmax/10 ms
- Insulation
- 4 kV/1 min.; 6 kV/1.2 μs
- Terminal
- pluggable terminal blocks 16 mm²
- Working temperature
- -20÷50°C
- Dimensions
- 4,5 moduleu (75 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- (wewnątrz pomieszczeń) IP51
- Measurement category (CAT)
- III
- Mechanical resistance
- M1
- Electromagnetic resistance
- E2
- Measuring system
- 3-phase 4-wire
- 2-way energy measurement
- NO
