Konwerter CN-USB-485

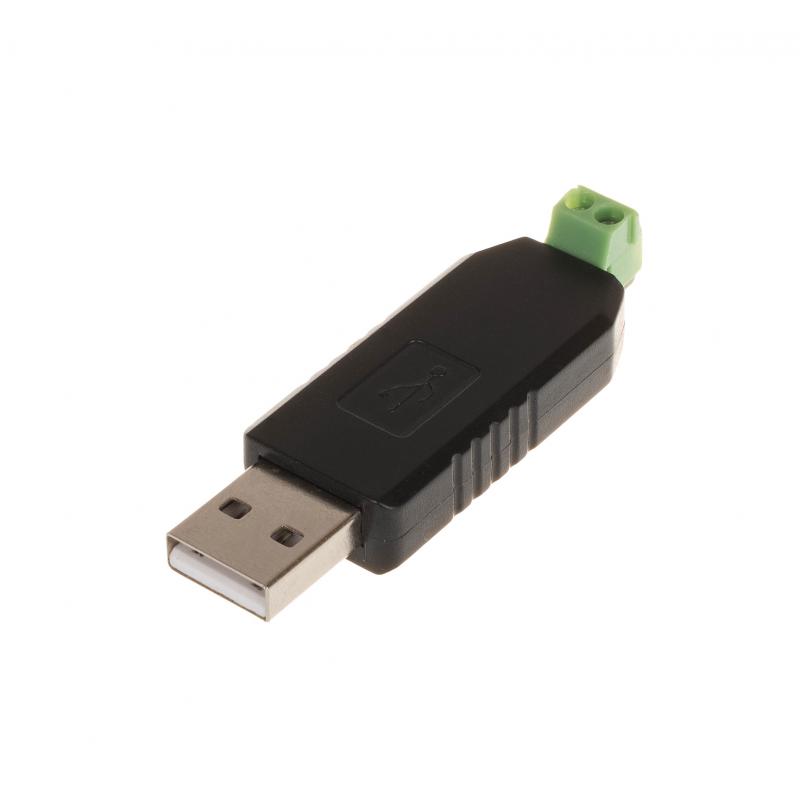

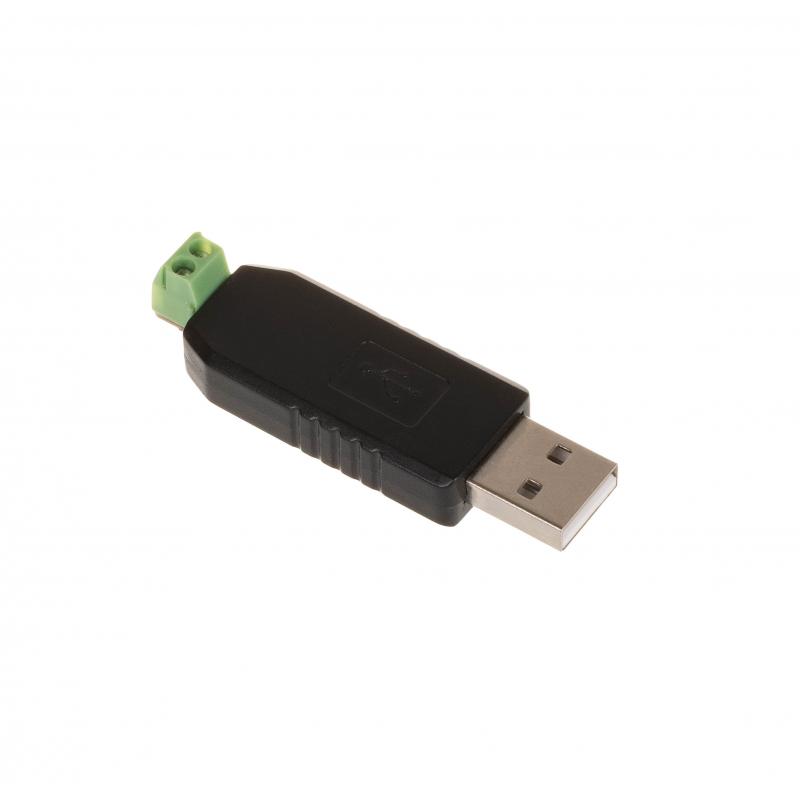

Konwerter RS-485 <=> USB.
Przeznaczenie
Uniwersalny, „przezroczysty” konwerter z RS485/USB
Opis wejść wyjść
A/D+ - B/D- – port RS-485
Montaż i podłączenie:
1. Wyłączyć zasilanie główne.
2. Podłączyć zaciski A-B zgodnie z oznaczeniem do urządzenia SLAVE
3. USB wpiąć do PC/Serwera
4. Załączyć zasilanie główne.
Instalacja PC:
- Po podłączeniu konwertera do PC sterowniki pobiorą się automatycznie.
- Uwaga dla konwerterów serii CH01 (nr podany dla obudowie urządzenia) może wystąpić błąd działania dla systemów Windows 10 i 11. W takim przypadku należy usunąć najnowszy sterownik z systemu i zainstalować wcześniejszą wersję sterownika 3.4.2014.8 (dostępna na podstronie urządzenia na fif.com.pl).
Dane techniczne
temperatura pracy -20÷50°C
przyłącze zaciski śrubowe 2x0,5mm²
moment dokręcający 0,4 Nm
wymiary 60x28x12 mm
