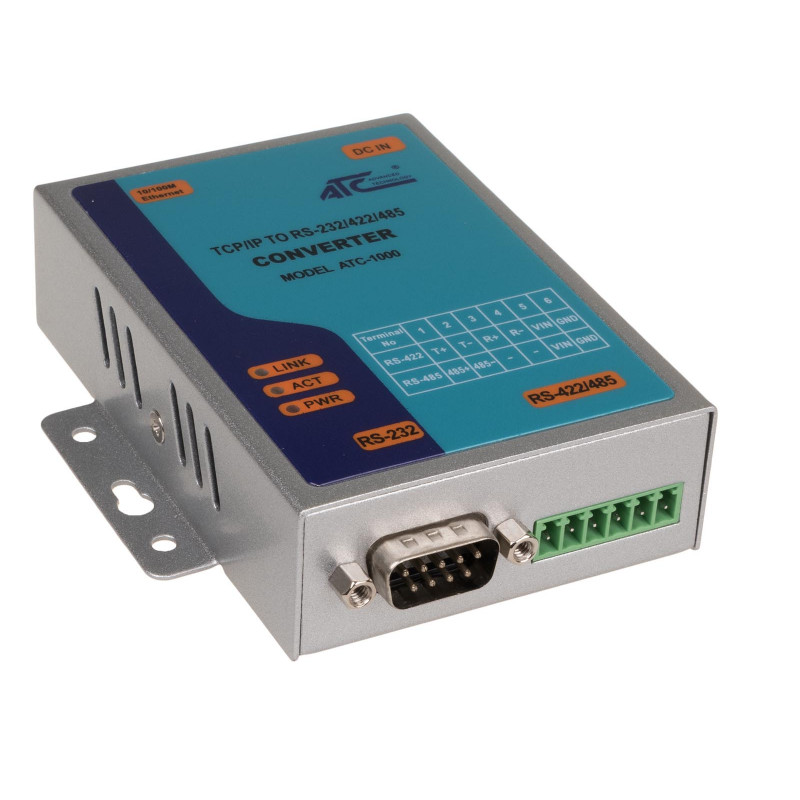

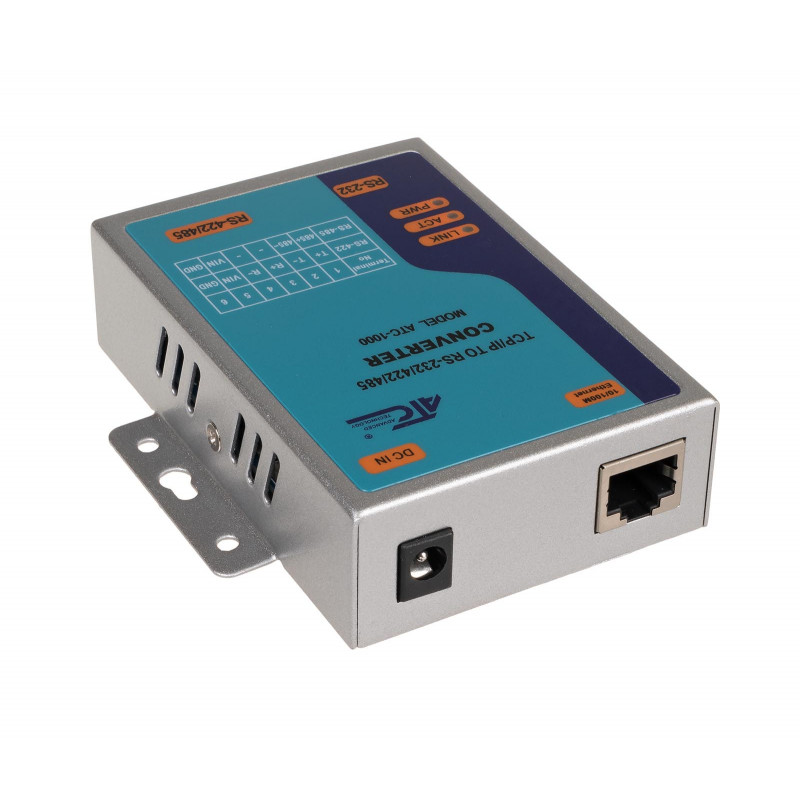

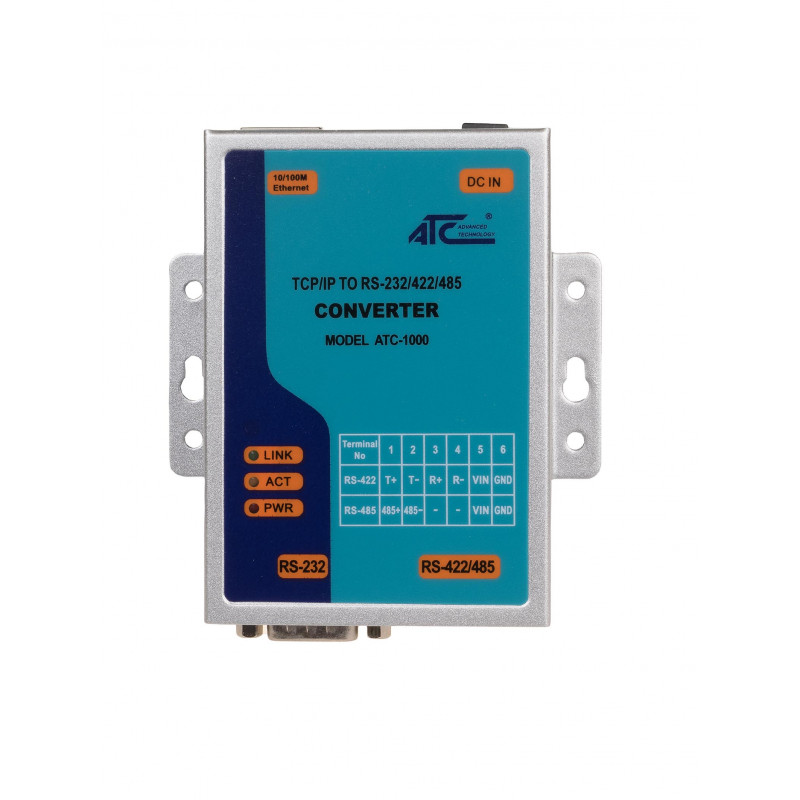

Konwerter ATC-1000
PRODUKT WYCOFANY ZE SPRZEDAŻY. ZAMIENNIK: CN-ETH-485.
Konwerter RS-485 <=> TCP/IP.Przeznaczenie
Konwerter umożliwia dostęp do portu szeregowego RS-485 z dowolnego komputera sieci lokalnej, a przy udostępnieniu IP w internecie również z każdego komputera na świecie, podłączonego do Internetu. Pełni on również rolę serwera portów szeregowych. Komunikacja odbywa się za pomocą protokołów TCP, UDP, DHCP i innych. Dostępne oprogramowanie umożliwia utworzenie w komputerze PC wirtualnego portu szeregowego i dostęp do szeregowego interfejsu konwertera ATC-1000 dołączonego w dowolnym miejscu sieci, tak jak do lokalnego portu COM tego komputera.
Cechy charakterystyczne
- gniazdo DB-9 męskie od strony RS-232
- 6 zaciskowy terminal dla RS-422/485 oraz zasilania
- gniazdo RJ-45 Ethernet wirtualny port szeregowy dla Windows OS
- interfejs sieciowy 10/100TX
- obsługa protokołów TCP/IP, UDP, DHCP
- zasilanie 9-24 V DC (zasilacz gniazdowy w komplecie)
RESET - powrót do ustawień fabrycznych
- wyłączyć zasilanie
- odkręcić boczne śruby i zdjąć obudowę
- nacisnąć przycisk znajdujący sie przy złączu RJ45
- trzymając przycisk załączyć zasilanie i trzymać powyżej 5 s.
- wyłączyć zasilanie, założyć obudowę i ponownie załączyć zasilanie
- konwerter dostępny będzie pod domyślnym adresem IP
